FUSES
- We offer a choice of fuses to fit our Isolator and Cut-out units with ratings available in 4, 6, 10, 16 and 25 amp.
- Our isolator fuse carrier CEL1132, accepts BS88/IEC269-1 cartridge fuses: LD for 230V – MD for 415V.
- The L506 fuse link and neutral break fuse carrier accepts BS88/IEC269-1 10 x 38 fuse.

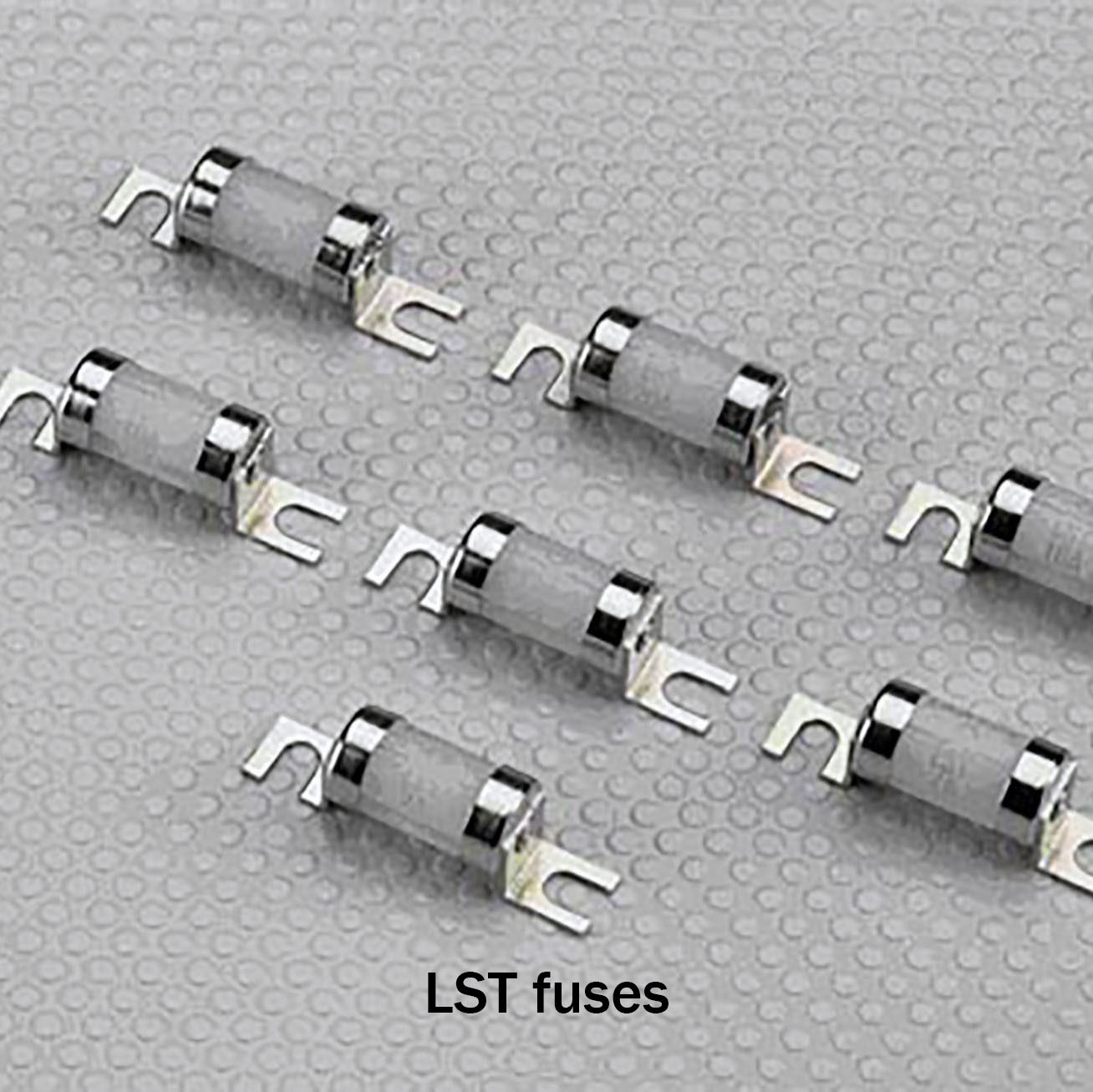

- Cut-outs accept BS88/IEC 60269-1 LST tag fuses which are held by fixing screws in the fuse carrier.
CABLE GLANDS
- BW and CW cable gland connectors.
- Manufactured to BS 6121
- Constructed from robust, high-quality brass
- Metal to metal armour clamping
- CW cable glands provide IP66 seal
- Cable size options up to 35 mm²
Our Plastic Glands PG are of solid construction and provide additional support and insulation to the cable, these can be used internally or externally and are available for cable sizes up to 35 mm².
EMERGENCY SAFETY DOORS
Our universal emergency doors fit all curved columns. Constructed from tough, non-conductive 3mm ABS plastic, they are held in place by either re-usable standard zinc plated banding or polyamide. All banding is retained in moulded channels to help minimise danger from sharp edges.
Product features:
- A quick and easy solution for damaged columns and lampposts
- Easily adapted for smaller applications
- Minimises the danger to the public
- Prevents further internal damage
TEMPORARY AUXILIARY SUPPLY DOORS
These doors provide quick and easy access to power for routine maintenance, festive lighting, outdoor events or for emergency supply purposes and are available empty or pre-fitted with an isolator, plug and socket.
Product features:
- Available in two sizes
- Can be firmly secured by 4 x nylon bolts
- IP65 rated
- Fully treated backboards
- Doors secured with tri-head locks
- Simple and easy to fit
For full product information, go to DOWNLOADS.
If you would like to know more about any of our products, please get in touch.
